Differences between Sonogram and Ultrasound

Ultrasound and sonogram

The terms ultrasound and sonogram are frequently used interchangeably in clinical and casual settings, though they refer to different aspects of the same medical process. Ultrasound refers to the diagnostic imaging technique or the high-frequency sound waves themselves. A sonogram is the visual image produced during an ultrasound examination. While all sonograms result from ultrasound, not all medical applications of ultrasound result in a sonogram, as some forms of the technology are used for therapeutic purposes rather than imaging.

Ultrasound technology utilizes sound waves with frequencies higher than the upper limit of human hearing, typically above 20 kilohertz. In a medical context, a healthcare provider uses a device called a transducer to send these waves into the body. The waves bounce off internal structures, and the returning echoes are captured and converted into electronic data.

Comparison of Ultrasound and Sonogram

Category	Ultrasound	Sonogram
Definition	The technology, procedure, or sound waves used.	The specific image or record produced by the procedure.
Scope	Broad; includes diagnostic and therapeutic uses.	Narrow; refers specifically to the output of diagnostic imaging.
Etymology	Latin ultra (beyond) and sonus (sound).	Latin sonus (sound) and Greek gramma (writing).
Primary Function	The physical mechanism of transmitting sound waves.	The clinical tool used for visual diagnosis.
Professional Usage	Used to describe the field of study (ultrasonography).	Used to describe the physical printout or digital file.
Examples	Obstetric ultrasound, Doppler ultrasound.	A 2D or 3D image of a fetus or internal organ.

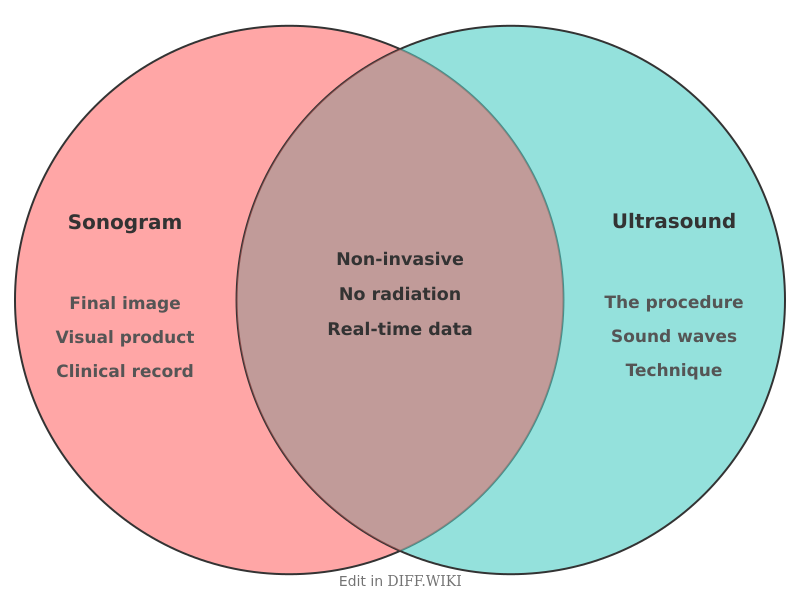

Venn diagram comparing Differences between Sonogram and Ultrasound

Technical process and imaging

The medical professional who performs the scan is known as a sonographer. During a diagnostic session, the sonographer applies a conductive gel to the skin to eliminate air pockets that could block sound waves. As the transducer moves across the area of interest, the internal computer processes the timing and intensity of the returning echoes. This data creates the sonogram in real-time on a monitor.

Diagnostic ultrasound is divided into two main categories: anatomical and functional. Anatomical ultrasound produces images of internal organs or other soft tissues. Functional ultrasound combines information such as the movement of blood or the speed of sound in tissue to create a more detailed sonogram that shows how the body is working.

Therapeutic ultrasound

A primary difference between the two terms involves applications where no image is produced. In therapeutic ultrasound, high-frequency sound waves are directed at specific tissues to provide heat or to break up internal deposits. For example, lithotripsy uses ultrasound waves to fragment kidney stones. Because these procedures focus on the physical effect of the sound waves on tissue rather than the creation of a visual record, the term sonogram is not applicable to these treatments.

Linguistic distinction

The distinction between ultrasound and sonogram is similar to the difference between a camera and a photograph. Ultrasound represents the equipment and the physics of the sound waves, while the sonogram represents the resulting picture. In medical records, a physician might order an "ultrasound of the gallbladder," and the resulting report will include the "sonograms" used for the diagnosis.
