Differences between Modem and Router
Contents
Comparison of modems and routers[edit]

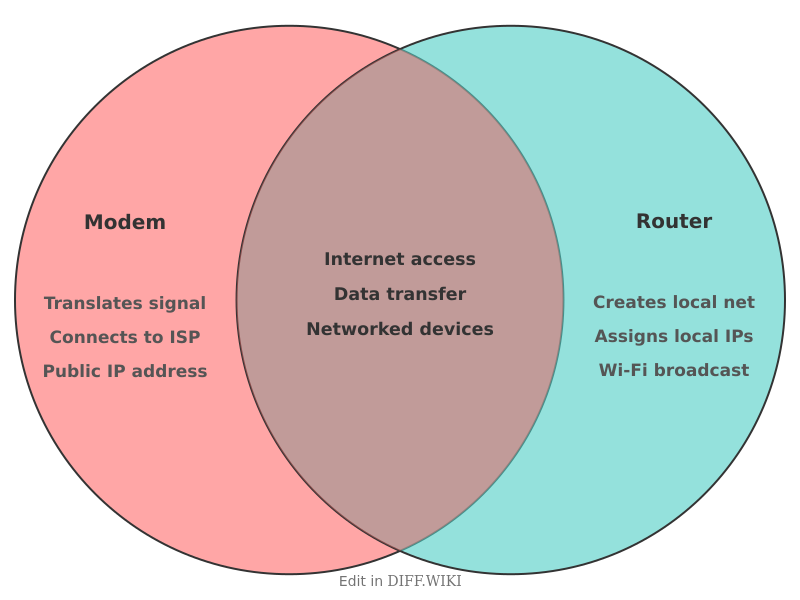

Modems and routers are distinct networking devices that often reside in the same physical housing but perform different roles within a computer network. A modem acts as the bridge between a local network and the internet service provider (ISP). A router directs data between devices on the local network and manages the connection between those devices and the modem.[1]
Comparison table[edit]
| Feature | Modem | Router |
|---|---|---|
| Primary function | Connects a home or office to the ISP | Connects multiple devices to each other and the modem |
| OSI layer | Data link layer (Layer 2) | Network layer (Layer 3) |
| IP address management | Receives a single public IP address from the ISP | Assigns private IP addresses to local devices via DHCP |
| Physical interface | Coaxial, phone line (DSL), or fiber optic cable | Ethernet ports and Wi-Fi antennas |
| Traffic management | Does not inspect data packets | Routes data packets to specific devices using MAC addresses |
| Security features | Limited to basic hardware passthrough | Includes firewalls, VPN support, and parental controls |
| Local area network (LAN) | Cannot create a local network | Creates and manages the local network |
Modem functionality[edit]
The term "modem" is a portmanteau of modulator-demodulator. Its primary purpose is to convert signals from an ISP's infrastructure into a digital format that a computer can interpret. For example, a cable modem converts radio frequency signals transmitted over coaxial cables into digital data. A DSL modem performs a similar task using copper telephone lines.[2]
Most modems have one Ethernet output port. This port provides internet access to a single device. If a user connects a computer directly to a modem, that computer occupies the public IP address provided by the ISP. This configuration leaves the computer exposed to the public internet without the protection of a router's hardware firewall.
Router functionality[edit]
A router serves as the central hub for a local area network (LAN). It takes the internet connection provided by the modem and distributes it to various devices, such as desktop computers, printers, and mobile phones. Routers use a process called Network Address Translation (NAT) to allow multiple devices to share the single public IP address assigned to the modem.[3]
Modern routers typically include a built-in switch with multiple Ethernet ports for wired connections. They also contain wireless access points to provide Wi-Fi connectivity. Beyond simple connectivity, routers manage internal traffic to prevent data collisions and provide security layers that block unauthorized incoming requests from the public internet.
Integrated gateway devices[edit]
Many ISPs provide customers with a single device that combines the functions of both a modem and a router. These are formally known as gateways but are often colloquially referred to as "modem-router combos." While these devices reduce cable clutter and simplify setup, they offer less flexibility for users who wish to upgrade their Wi-Fi standards or customize advanced routing protocols without replacing the modem component.[4]
References[edit]
- ↑ Lowe, Doug (2020). Networking All-in-One For Dummies. John Wiley & Sons. p. 74. ISBN 9781119648123.
- ↑ Seifert, Rich; Edwards, James (2008). The All-New Switch Book: The Complete Guide to LAN Switching Technology. Wiley. p. 12. ISBN 9780470287156.
- ↑ Tanenbaum, Andrew S.; Wetherall, David J. (2011). Computer Networks. Prentice Hall. p. 431. ISBN 9780132126953.
- ↑ White, Curt (2016). Data Communications and Computer Networks: A Business User's Approach. Cengage Learning. p. 215. ISBN 9781305116634.
