Magnetic resonance imaging vs. X-ray[edit]
Magnetic resonance imaging (MRI) and projectional radiography (X-ray) are diagnostic tools used to view the internal structures of the body. These technologies differ in their physical mechanisms, the types of tissue they highlight, and their safety profiles. X-rays were discovered in 1895 and use high-energy electromagnetic radiation to produce images based on tissue density.[1] MRI, developed in the 1970s, utilizes strong magnetic fields and radio waves to map the distribution of hydrogen protons in the body.[2]

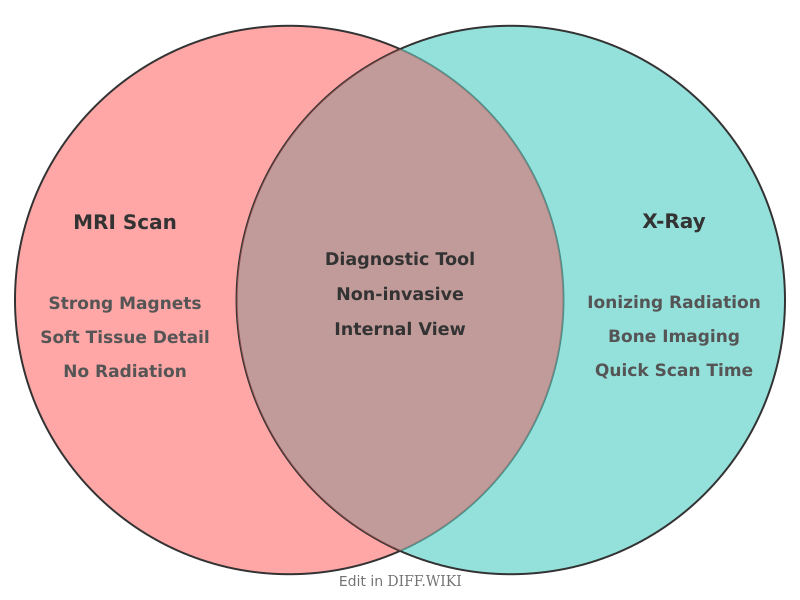

Comparison table[edit]
| Category | X-ray | MRI |
|---|---|---|
| Radiation type | Ionizing radiation | Non-ionizing (Radio waves) |
| Primary imaging target | Bone and dense structures | Soft tissues and organs |
| Typical duration | 1 to 10 minutes | 15 to 90 minutes |
| Equipment cost | Low to moderate | High |
| Main safety risk | Cumulative radiation exposure | Ferromagnetic projectile effect |
| Image dimension | Two-dimensional (2D) | Three-dimensional (3D) |
| Common applications | Fractures, dental, chest exams | Brain, spinal cord, ligaments |
Physical mechanisms[edit]
X-ray imaging relies on the transmission of photons through the body. Dense materials, such as bone or metal, absorb a high percentage of these photons and appear white on the resulting film or digital sensor. Softer tissues like muscle and fat allow more photons to pass through, appearing as shades of gray. This process is fast and allows for immediate visualization of skeletal injuries.[3]
MRI scanners function by creating a powerful magnetic field that aligns the spin of hydrogen nuclei, or protons, within the patient's body. Radiofrequency pulses are applied to disturb this alignment. As the protons return to their original state, they emit signals that are captured by receiver coils. Since different tissues have varying water and fat content, the computer processes these signals into detailed cross-sectional images. This technique provides higher contrast between different types of soft tissue than X-ray methods.[4]
Safety and limitations[edit]
Safety protocols for these two methods address different hazards. X-rays involve ionizing radiation, which has the potential to damage DNA. While a single diagnostic X-ray carries a low risk, physicians limit their use to avoid cumulative exposure over a patient's lifetime. Pregnant women are often advised against X-rays of the abdomen to protect the fetus.[5]
MRI scans do not use ionizing radiation but involve magnets that are thousands of times stronger than the Earth's magnetic field. This environment is hazardous for patients with ferromagnetic implants, such as certain pacemakers, cochlear implants, or shrapnel. The magnetic field can cause these objects to move or heat up. Additionally, the confined space of the MRI bore can cause distress for patients with claustrophobia, and the loud tapping noises produced by the gradient coils require the use of ear protection.[6]
