Differences between GIF and JPEG

Comparison Article

The Graphics Interchange Format (GIF) and the Joint Photographic Experts Group (JPEG) format are two standards for the storage and transmission of digital images. CompuServe released the original GIF specification in 1987 to provide a color image format for its file transfer areas. The JPEG standard was developed by an international committee and published in 1992 to address the requirements of photographic image compression.

Comparison of specifications

The primary difference between the two formats lies in the methods used to compress data and the resulting image fidelity.

Feature	GIF	JPEG
Year released	1987	1992
Color depth	8-bit (256 colors)	24-bit (16.7 million colors)
Compression type	Lossless (LZW)	Lossy (DCT)
Animation support	Yes	No
Transparency	1-bit (on/off)	No
Primary application	Logos, simple graphics	Photographs, realistic art

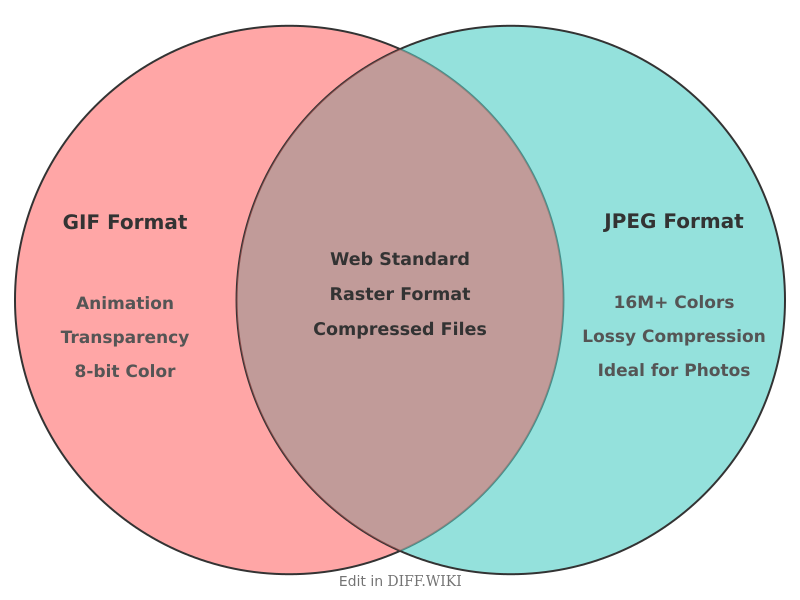

Venn diagram comparing Differences between GIF and JPEG

Technical differences

Color depth and palette

GIF is an indexed color format. Every image contains a palette of up to 256 distinct colors chosen from a 24-bit RGB space. This limitation makes the format unsuitable for photographs, where smooth gradients and subtle color shifts are required. When a photograph is saved as a GIF, the software must use dithering to simulate missing colors, which often results in a grainy appearance.

JPEG uses a 24-bit color space, allowing for more than 16 million colors. It stores color information for every pixel or block of pixels, which enables the reproduction of the continuous tones found in nature and photography.

Compression methods

GIF uses the Lempel-Ziv-Welch (LZW) compression algorithm. This is a lossless method, meaning the pixel data remains identical to the original after decompression. LZW is effective at compressing images with large areas of a single color, such as diagrams or navigation buttons.

JPEG uses lossy compression based on the discrete cosine transform (DCT). This process discards information that the human eye is less likely to perceive, such as fine details in high-frequency color variations. Users can adjust the compression level to balance file size against image quality. High compression ratios lead to visible "artifacts," such as blocking or ringing around sharp edges.

Transparency and animation

The GIF89a specification introduced support for transparent backgrounds and multiple-frame animations. Transparency in GIF is binary; a pixel is either fully opaque or fully transparent. This can cause jagged edges, known as "halos," when a graphic is placed over a background of a different color.

JPEG does not support transparency or animation. While a variation called Motion JPEG exists for video, the standard .jpg or .jpeg file remains a single, static, opaque image.
