Differences between CT Scan and MRI
Contents
Comparison Article[edit]
Computed tomography (CT) and magnetic resonance imaging (MRI) are non-invasive diagnostic technologies used to produce cross-sectional images of internal body structures. Although both techniques generate high-resolution data, they rely on different physical principles and are utilized for different clinical indications. CT scans utilize ionizing radiation (X-rays) to measure tissue density, while MRI employs strong magnetic fields and radiofrequency pulses to map the distribution of hydrogen nuclei in the body.

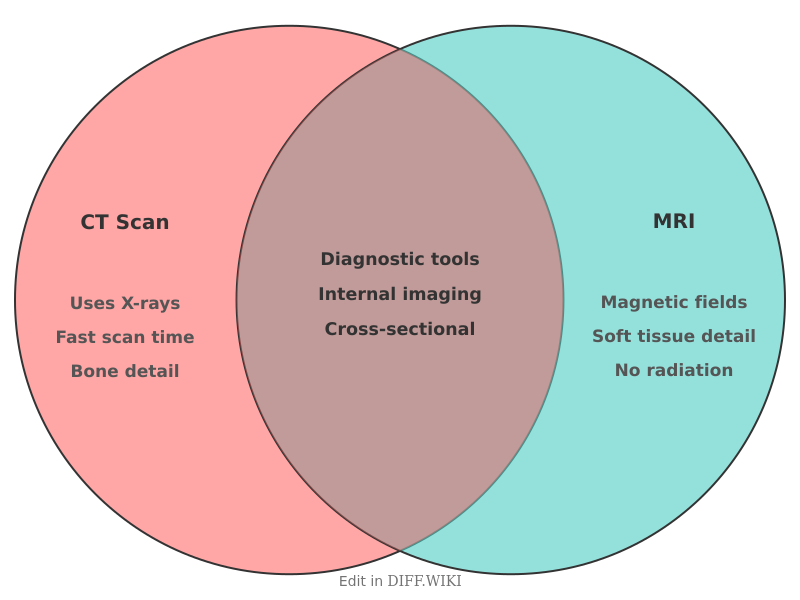

Comparison table[edit]
| Category | Computed tomography (CT) | Magnetic resonance imaging (MRI) |
|---|---|---|
| Physics | Ionizing radiation (X-rays) | Magnetic fields and radio waves |
| Duration | 1 to 10 minutes | 30 to 90 minutes |
| Primary use | Bone, lungs, acute trauma, chest | Soft tissue, brain, spinal cord, ligaments |
| Radiation risk | Present (Ionizing) | None |
| Cost | Generally lower | Generally higher |
| Contrast agent | Iodine-based | Gadolinium-based |
| Patient experience | Quiet, open-bore gantries | Loud, narrow-bore (claustrophobia risk) |
| Metallic implants | Usually safe | Frequent contraindication |
Technical mechanisms[edit]
The CT scanner consists of a motorized X-ray source that rotates around a circular opening called a gantry. As X-rays pass through the patient, they are attenuated by different tissues. Detectors on the opposite side of the gantry record the remaining radiation. Computer algorithms then process these measurements to calculate the Hounsfield units of each pixel, resulting in a three-dimensional reconstruction. This method is effective for identifying structural changes in dense tissues like bone.
MRI operates on the principle of nuclear magnetic resonance. The patient is placed within a high-strength magnetic field, which causes the protons (hydrogen nuclei) in the body to align. Radiofrequency pulses are applied to tip these protons out of alignment. When the pulse ends, the protons return to their original state and emit energy. The rate of this "relaxation" varies depending on the chemical environment of the tissue. MRI systems detect these signals to create detailed images of soft tissues, such as the white and gray matter of the brain.
Clinical applications[edit]
Medical professionals select imaging modalities based on the suspected pathology. CT is a standard tool in emergency departments because of its speed. It is used to detect intracranial hemorrhages, pulmonary embolisms, and complex bone fractures. CT angiography is also used to evaluate the vascular system for blockages or aneurysms.
MRI provides superior contrast for soft tissues compared to CT. It is used to diagnose neurological conditions such as multiple sclerosis, brain tumors, and strokes that may not be visible on a CT scan during the acute phase. In orthopedics, MRI is used to assess injuries to tendons, ligaments, and cartilage.
Safety and contraindications[edit]
CT scans expose patients to ionizing radiation. This exposure is cumulative over a lifetime, and clinicians generally limit the number of scans to reduce long-term cancer risks. Iodine-based contrast dyes used in CT can also cause allergic reactions or kidney stress in susceptible patients.
MRI does not use radiation, but the strong magnetic field creates safety concerns. Patients with ferromagnetic implants—such as certain pacemakers, cochlear implants, or shrapnel—cannot enter the MRI room. The magnetic field can pull on these objects or cause them to heat up. Additionally, the loud acoustic noise produced by gradient coils requires the use of hearing protection.
