Differences between CCD and CMOS
Contents

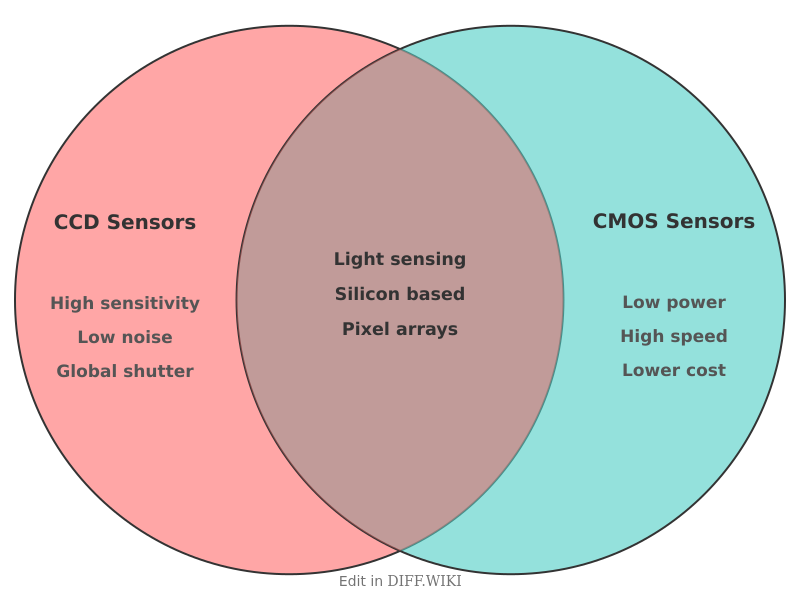

CCD vs. CMOS sensors[edit]
Digital image sensors convert light into electrical signals through the photoelectric effect. Charge-coupled devices (CCD) and complementary metal-oxide-semiconductor (CMOS) sensors are the primary technologies used for this purpose. Although both utilize silicon as a base material to capture incoming photons, they differ in how they process the resulting electrical charge and transfer data to the rest of the imaging system.[1]
Operational mechanisms[edit]
The principal distinction between these sensors lies in the architecture of the readout circuitry. In a CCD, the charge accumulated in each pixel is moved across the chip through a series of "shift registers" to a single output amplifier. This process, often compared to a "bucket brigade," converts the charge into a voltage at one corner of the sensor. Because the entire frame typically passes through the same amplifier, the signal is uniform across all pixels.[2]
CMOS sensors utilize an "active pixel" architecture. Each pixel contains its own transistor-based amplifier, which converts charge to voltage at the site of capture. This allows the sensor to read out multiple rows or columns in parallel. While this parallel processing increases data transfer speeds, it historically introduced "fixed pattern noise," as slight variations in the individual amplifiers caused inconsistencies in the final image. Improvements in fabrication and digital signal processing have largely mitigated these issues in modern hardware.[3]
Technical comparison[edit]
The following table outlines the functional differences between typical CCD and CMOS architectures.
| Category | CCD | CMOS |
|---|---|---|
| Readout method | Serial (bucket brigade) | Parallel (per-pixel conversion) |
| Power consumption | High (often requires multiple voltages) | Low (uses standard logic voltages) |
| Data speed | Moderate | Very high |
| System integration | Low (requires external support chips) | High (camera-on-a-chip) |
| Manufacturing cost | Higher (specialized processes) | Lower (uses standard CMOS lines) |
| Image uniformity | Excellent | Moderate to good |
| Shutter type | Global shutter (standard) | Rolling shutter (standard; global available) |
| Heat generation | High | Low |
Applications[edit]
For several decades, CCDs were the preferred choice for high-end photography, scientific imaging, and medical applications due to their superior light sensitivity and low noise floors. They remain in use for specific astronomical observations and industrial inspections where near-perfect uniformity is required.[4]
CMOS technology has become the dominant standard for the majority of the imaging market. Because CMOS sensors can be manufactured on the same production lines as computer processors and memory chips, they are significantly cheaper to produce at scale. Their lower power requirements and ability to integrate timing and control logic directly onto the sensor die make them suitable for mobile phones, digital single-lens reflex (DSLR) cameras, and automotive safety systems. High-speed video recording also relies on CMOS architecture to achieve frame rates that exceed the bandwidth limitations of serial CCD readout.
References[edit]
- ↑ Litwiller, D. (2001). "CCD vs. CMOS: Facts and Fiction". Photonics Spectra.
- ↑ Holst, G. C., & Lomheim, T. S. (2011). CMOS/CCD Sensors and Camera Systems. JCD Publishing.
- ↑ Bigas, M., et al. (2006). "Review of CMOS image sensors". Microelectronics Journal.
- ↑ Janesick, J. R. (2001). Scientific Charge-Coupled Devices. SPIE Press.
